Ford C3 transmission

Was used 1974-87 in many Ford products.

This was an hydraulically controlled rear wheel drive transmission.

Rear cooler line is the cooler return line.

Band adjustment:
Intermediate = 1½ turns
Reverse = Not adjustable

Gear Ratios:
2.47:1 1st gear
1.47:1 2nd gear
1.00:1 3rd gear
2.1:1 reverse

Transmission

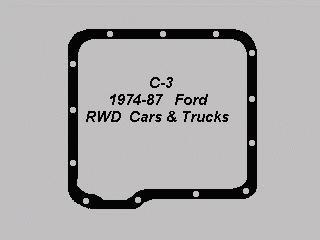

Pan and gasket

(click on picture to enlarge)
