TorqueFlite (cast iron case)

Also known as type A

1956-61

Used in various Chrysler products.

Band adjustments:
Intermediate = 2˝ turns (after torquing to 70- 75 in-lbs.) for all except Ram engine or 300
Intermediate = 2 turns (after torquing to 70- 75 in-lbs.) for  Ram engine or 300
Reverse = 2˝ turns (after torquing to 70- 75 in-lbs.)

Gear Ratios:
2.45:1 1st gear
1.45:1 2nd gear
1.00:1 3rd gear
2.20:1 reverse

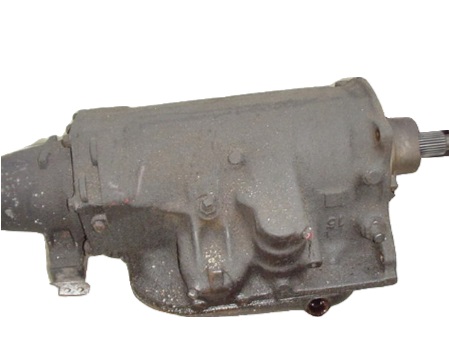

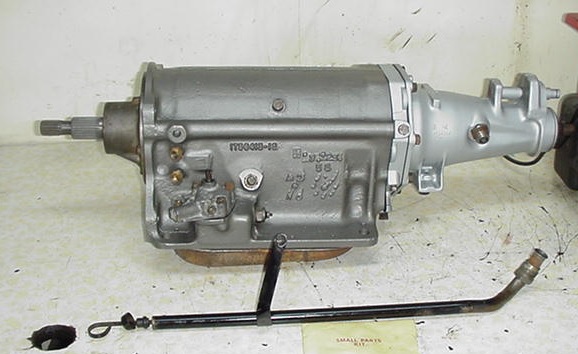

Transmission


Pan gasket

(click on picture to enlarge)

Click here to go to parts identification page

Click to see CI Torqueflite parts I have listed for sale
