Ford A4LD transmission

A4LD

Used in 1985-94 in many Ford products.

This is a partially computer controlled rear wheel drive transmission.

Top cooler line is the cooler return line.

Band adjustments:
O/D = 1½ turns
Intermediate = 1½ turns
Reverse = Not adjustable

Gear Ratios:
2.47:1 1st gear
1.47:1 2nd gear
1.00:1 3rd gear
0.75:1 4th gear
2.1:1 reverse

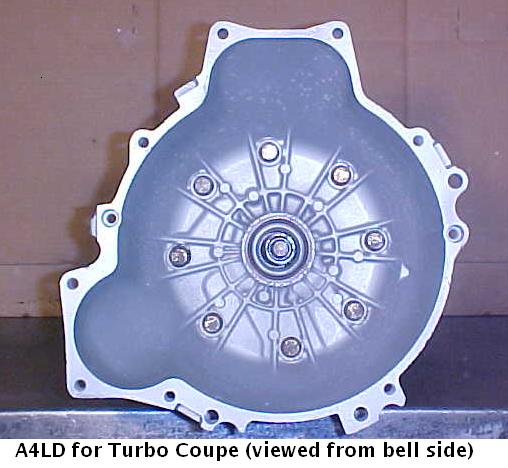

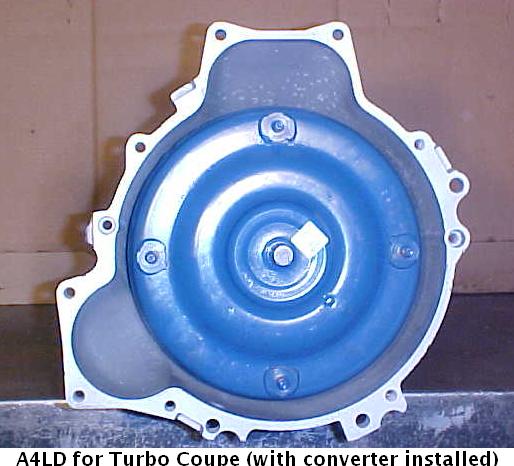

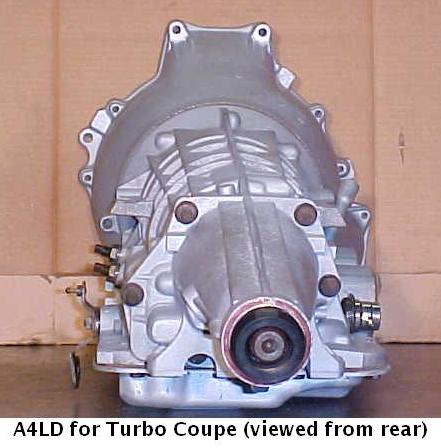

Transmission

Pan gasket

(click on picture to enlarge)
