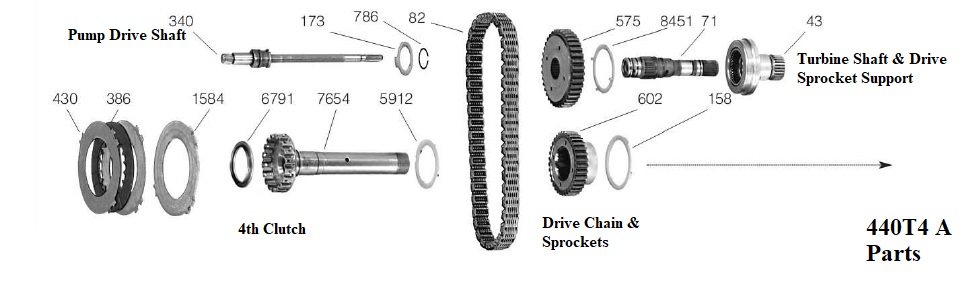

CHAIN &
SPROCKETS, 4th CLUTCH, PUMP DRIVE SHAFT, TURBINE Shaft, and DRIVE
SPROCKET SUPPORT
|
 |
DRIVEN SPROCKET
SUPPORT, REVERSE BAND, & 2nd CLUTCH HOUSING |
 |

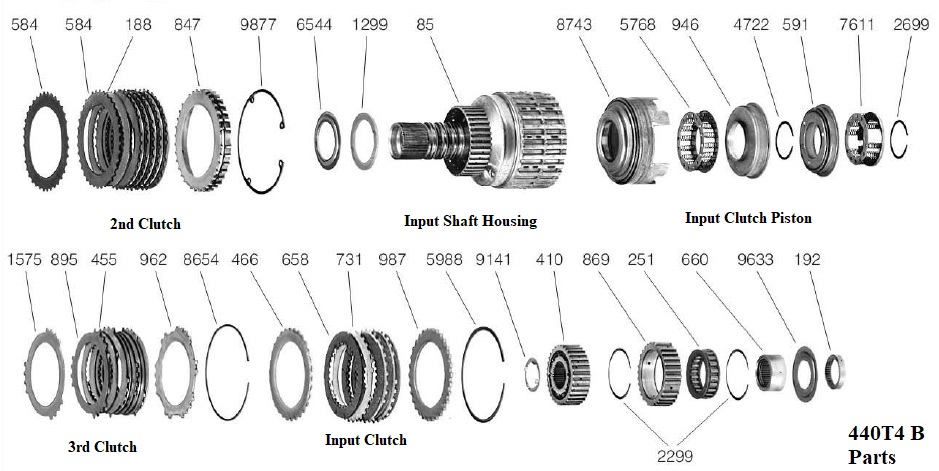

2nd CLUTCH, INPUT
SHAFT HOUSING, INPUT CLUTCH PISTON, 3rd CLUTCH, & INPUT CLUTCH |
 |

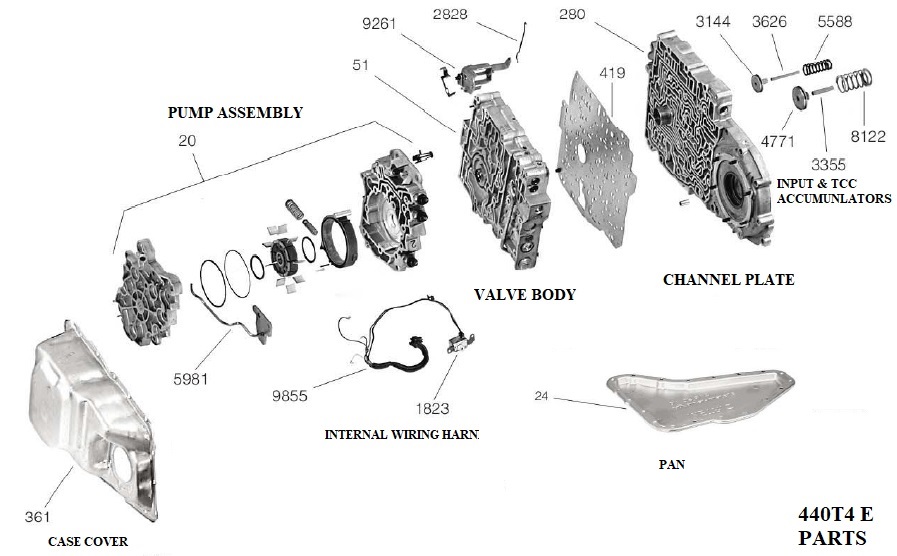

CASE COVER,
PUMP ASSEMBLY, INTERNAL WIRING HARNESS, VALVE BODY, CHANNEL PLATE, &
INPUT and TCC ACCUMULATORS |
 |

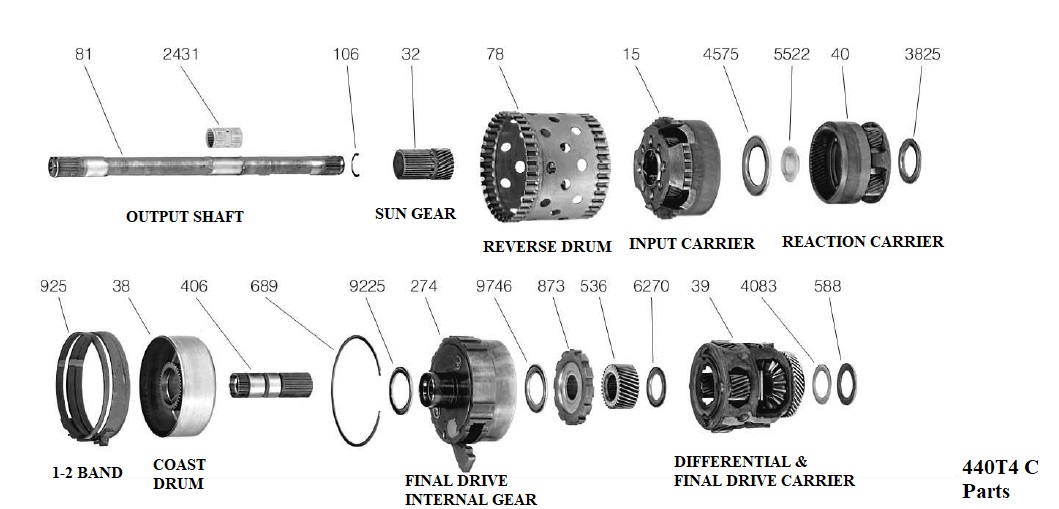

OUTPUT SHAFT, SUN
GEAR, REVERSE DRUM, INPUT CARRIER, REACTION CARRIER, 1-2 BAND, COAST
DRUM, FINAL DRIVE INTERNAL GEAR, & DIFFERENTIAL and FINAL DRIVE
CARRIER |
 |

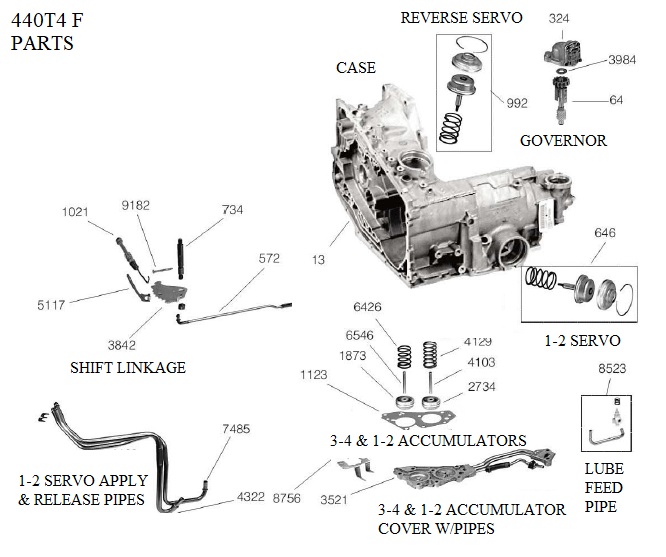

1-2 SERVO APPLY &
RELEASE PIPES, SHIFT LINKAGE, CASE, REVERSE SERVO, GOVERNOR, 1-2
SERVO, 1-2 & 3-4 ACCUMULATORS, 1-2 & 3-4 ACCUMULATOR COVER W/TUBES,
and LUBE FEED TUBE |
| |
CLICK ON A PICTURE TO ENLARGE IT |
|
440T4 |
