425 THM

Used 1966-78.  Was used in Olds Toronado and Cadillac Eldorado.  Also used in 1973-78 GMC Motorhome.

This was an hydraulically controlled front wheel drive three speed transmission.

1966-67 had a Variable Pitch (AKA Switch Pitch)  Torque Converter.  1968-up did not.

Cooler line farthest from torque converter is the cooler return line.

Band adjustments:
Intermediate = not adjustable
Reverse = not adjustable

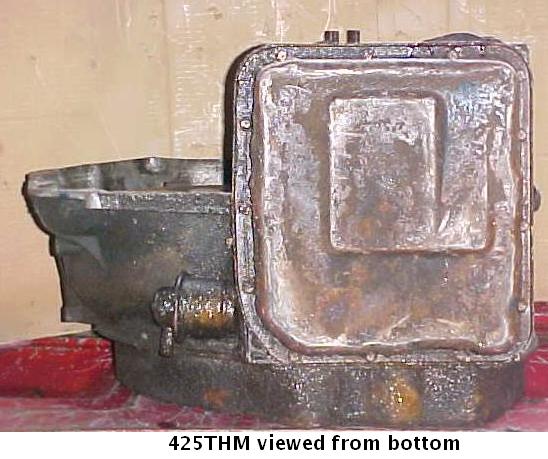

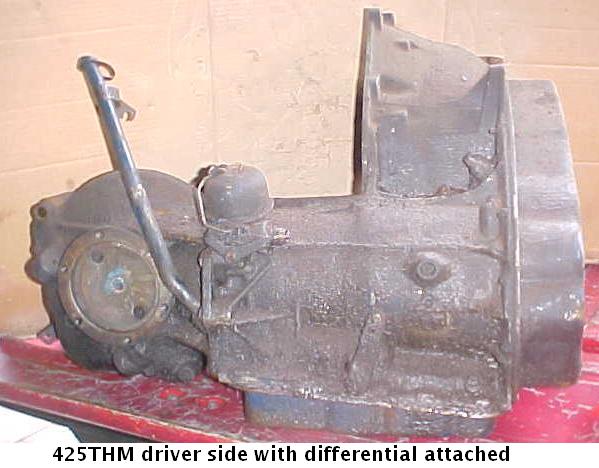

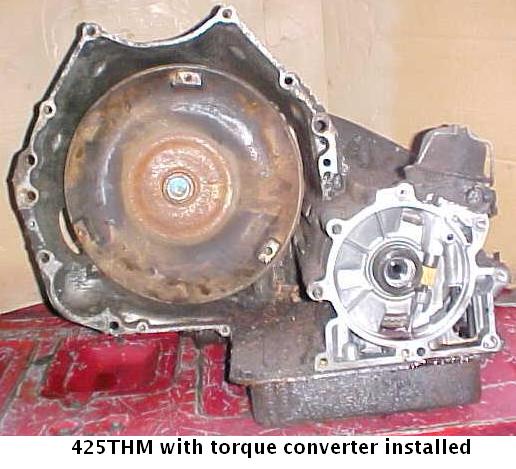

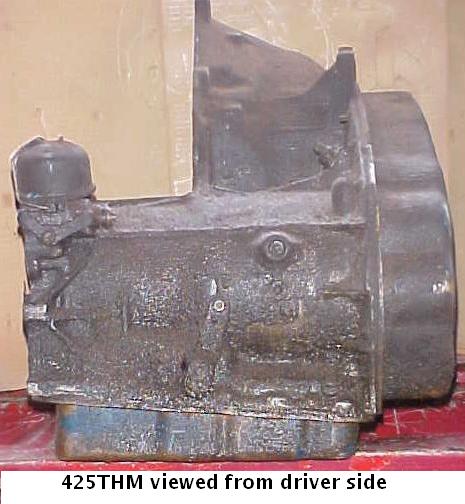

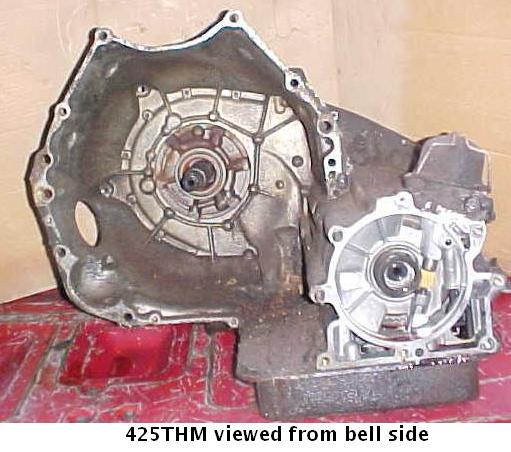

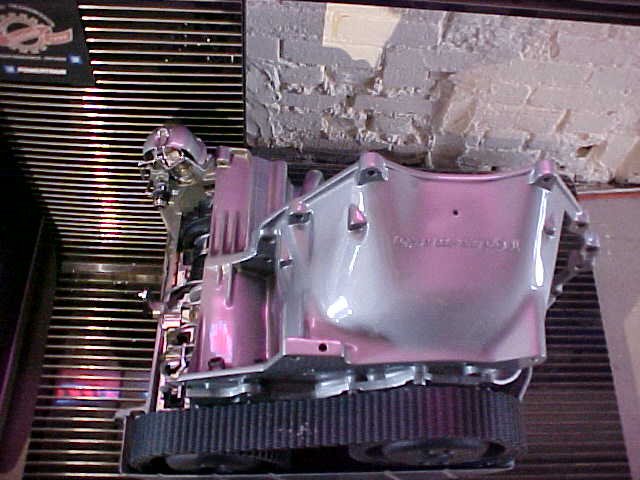

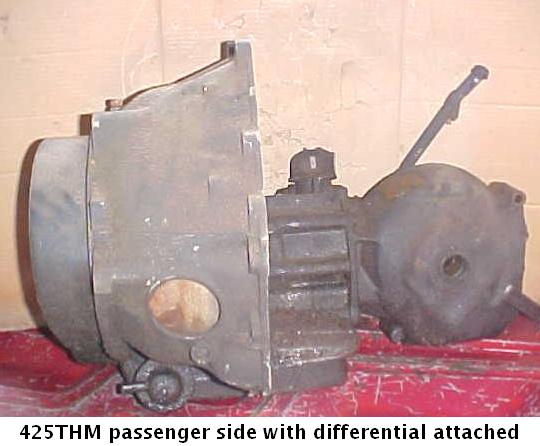

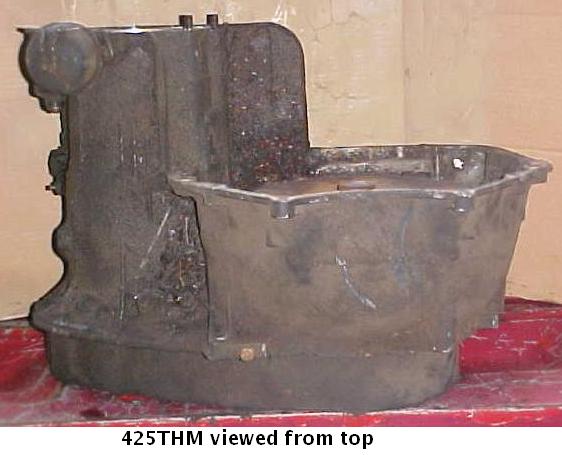

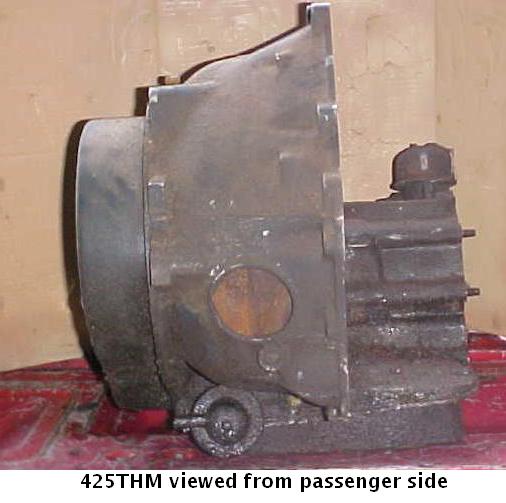

Transmission

(click on picture to enlarge)

  Click here to go to parts identification page

425THM Parts I Have Listed For Sale




Pan gasket

(click on picture to enlarge)
