200 THM

Used 1976-80.  The 1981-87 version was called 200C and had an electronically controlled lock-up torque converter.  There were MANY versions and were used in various GM models as well as some Jaguars and Isuzus.

It had an aluminum case.  Pan shape was similar to 350 THM, but was embossed "METRIC".  It had no modulator and there was no removable extension housing.  With the exception of the manual lever seal and the rear seal and bushing NONE of the parts for this transmission are interchangeable with the 350 THM.

This transmission was an hydraulically controlled 3 speed.

Bottom cooler line is the cooler return line.

Band adjustments:
Intermediate = not adjustable
Reverse = not used

Gear Ratios:
2.74:1 1st gear
1.57:1 2nd gear
1.00:1 3rd gear
2.07:1 reverse

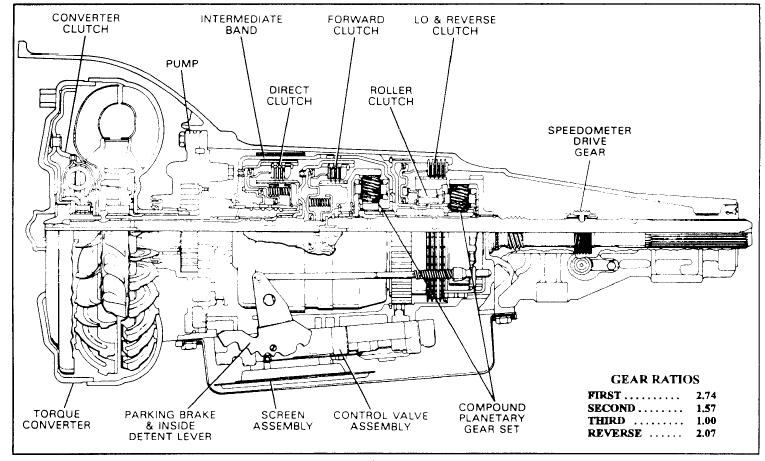

Transmission

(click on picture to enlarge)




Pan gasket

(click on picture to enlarge)
