Borg-Warner 3 band transmission

Studebaker Automatic Drive

(BW DG150M/BW DG250)

also known as Three Band Borg-Warner

Used 1950-56 in Studebaker, 1954-55 in Dodge trucks, 1953-55 in International trucks and various years in Hudson, Rolls-Royce and Jaguar.

This was an hydraulically controlled transmission.

Band adjustments:
Front = 4 turns
Center = 4 turns
Reverse = 4 turns

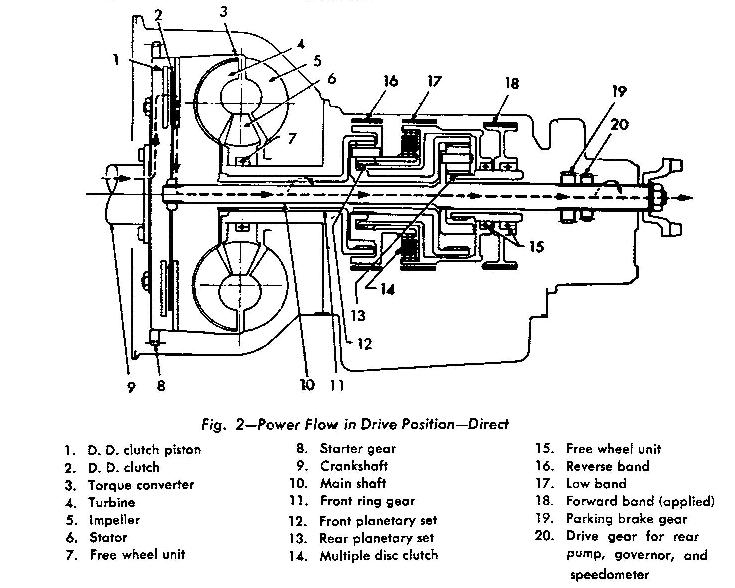

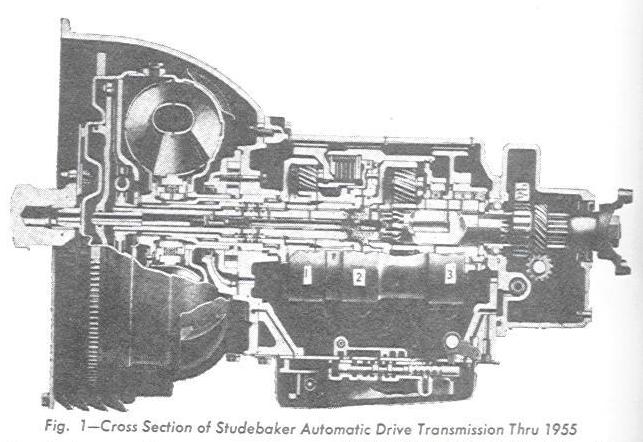

Transmission

(click on picture to enlarge)

Click here to go to parts identification page
