Ford F-4EAT transmission

F-4EAT

Used in 1991-UP Escort and Tracer. Also used 1990-up in Mazda 323, Protege & MK3 and Kia Sephia as an F4A-EL

This is a computer controlled front wheel drive transmission.

Cooler line nearest pump is the cooler return line.

Band adjustments:
Front = no adjustment available
Reverse = not used

Gear Ratios:
2.80:1 1st gear
1.54:1 2nd gear
1.00:1 3rd gear
.70:1 4th gear
2.33:1 reverse

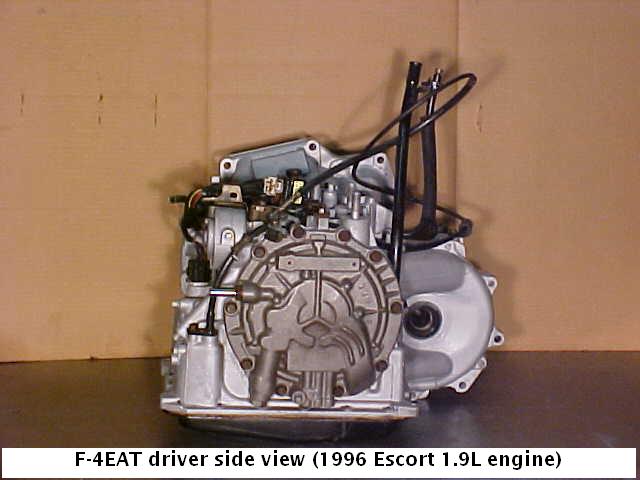

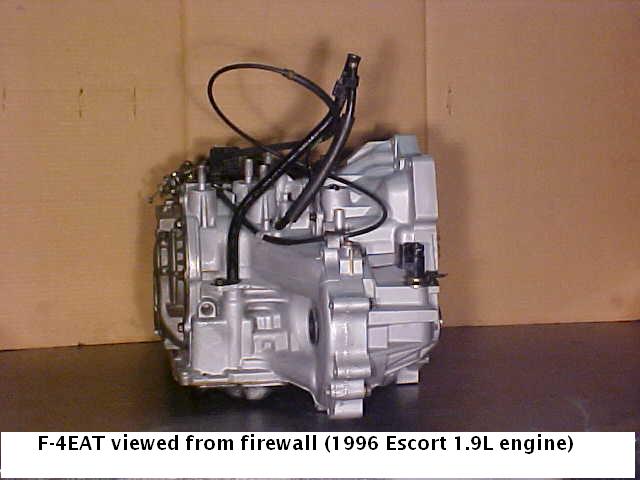

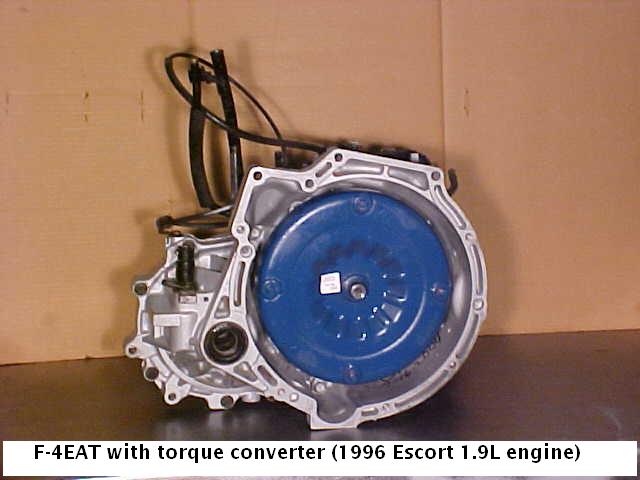

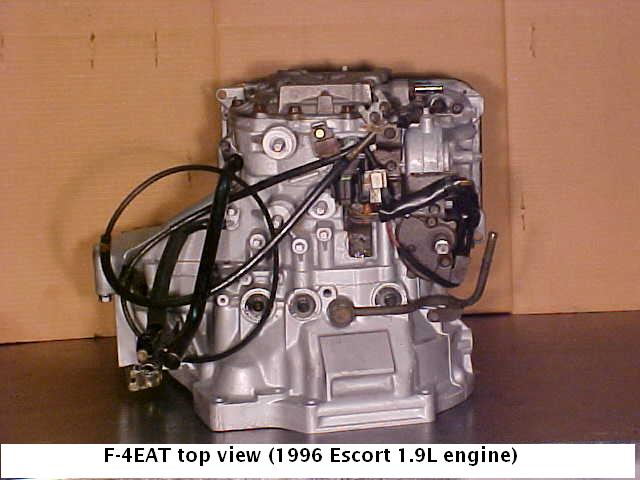

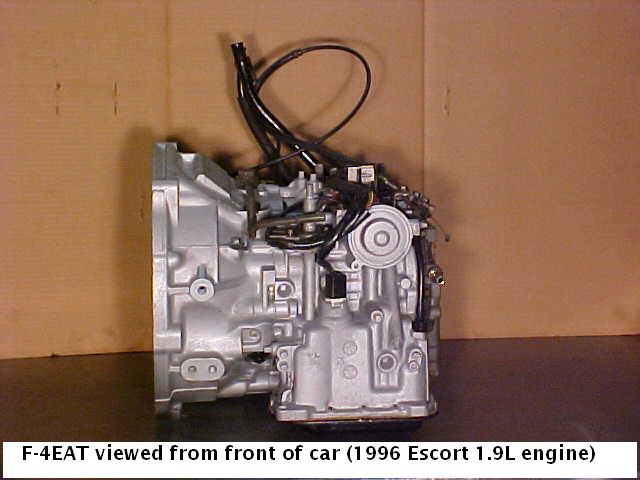

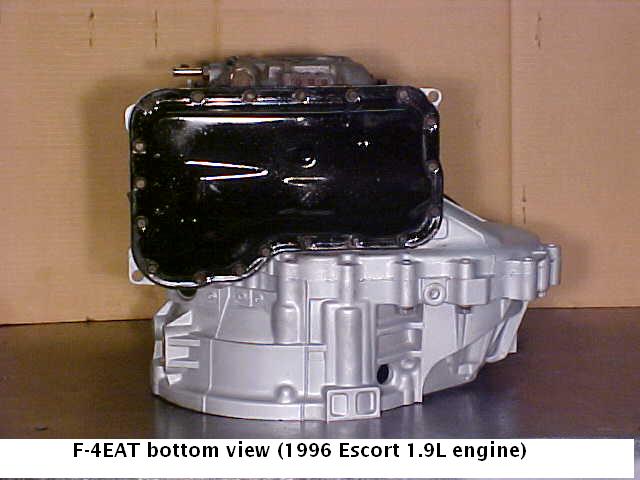

Transmission

(click on picture to enlarge)

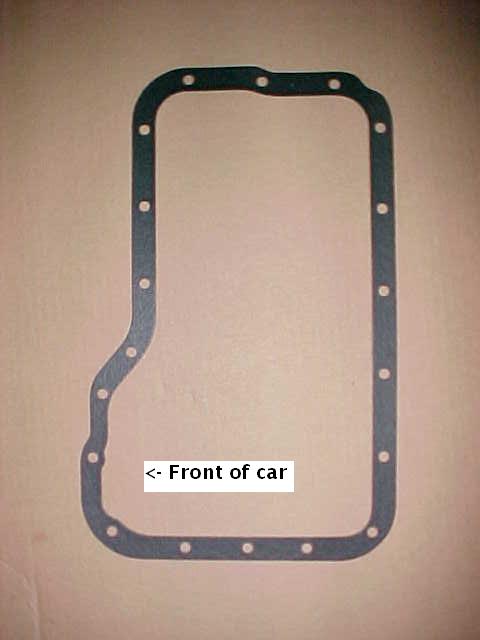

Pan gasket
