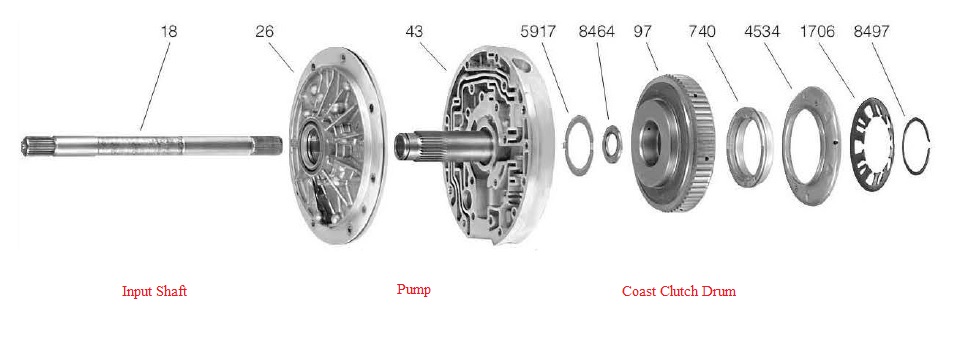

INPUT SHAFT, PUMP & COAST CLUTCH DRUM
|
|

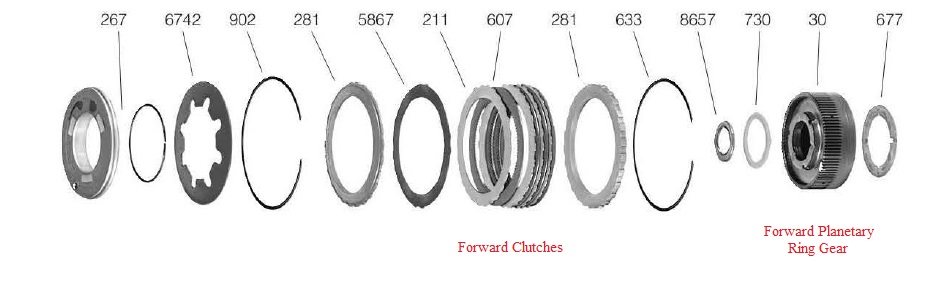

FORWARD CLUTCHES & FORWARD PLANETARY RING GEAR |
|
|
|

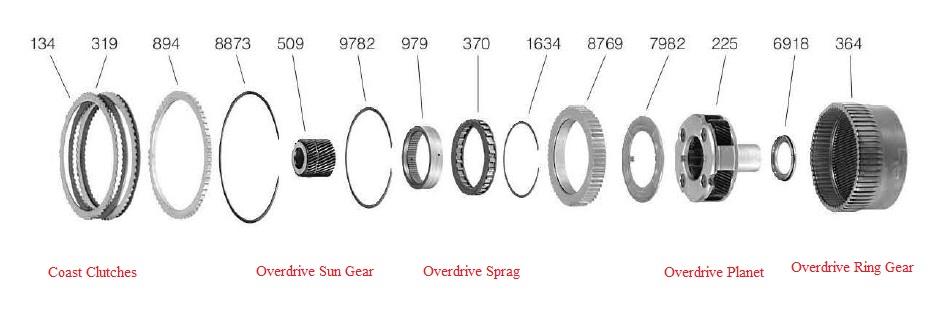

COAST CLUTCHES, OVERDRIVE SUN GEAR, OVERDRIVE SPRAG, OVERDRIVE PLANET & OVERDRIVE RING GEAR |
|

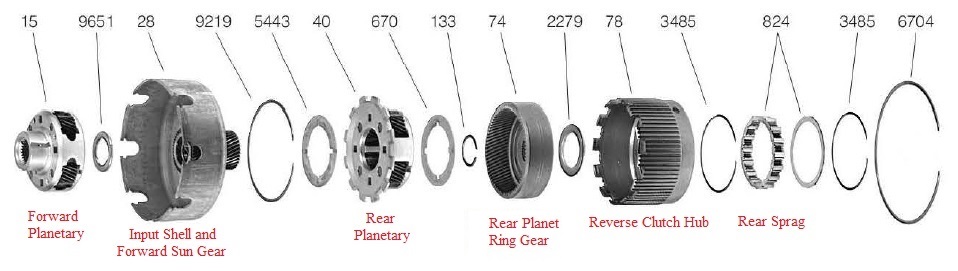

FORWARD PLANETARY, INPUT SHELL and FORWARD SUN GEAR, REAR PLANETARY, REAR PLANET RING GEAR, REVERSE CLUTCH HUB & REAR SPRAG | |
|
|

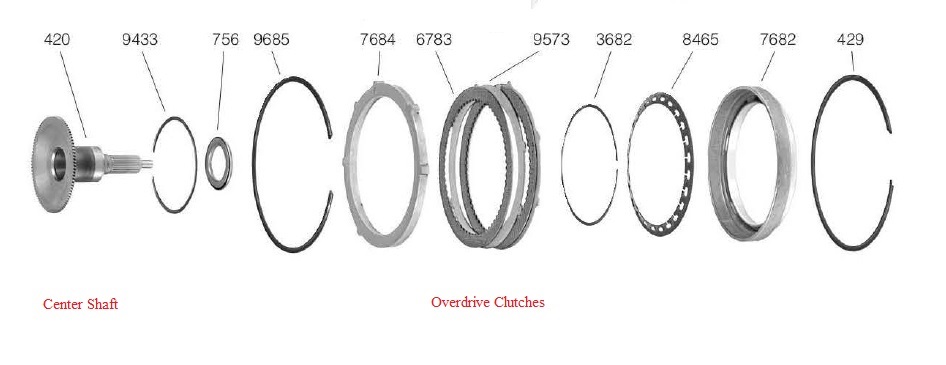

CENTER SHAFT & OVERDRIVE CLUTCHES |
|
||
|
|

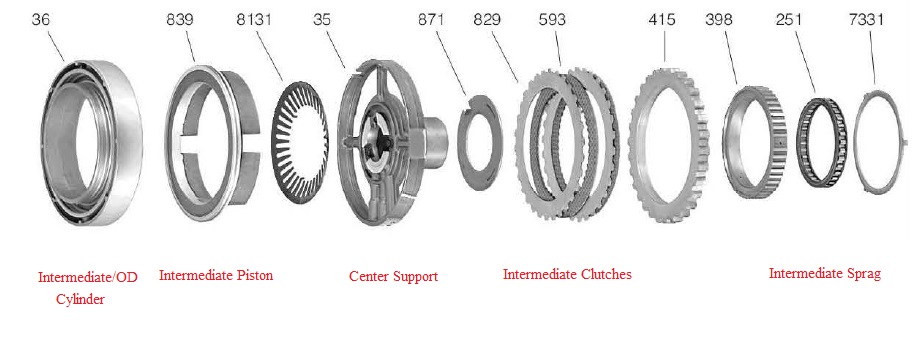

INTEMEDIATE/OD CYLIDER, INTERMEDIATE PISTON. CENTER SUPPORT, INTERMEDIATE CLUTCHES & INTERMEDIATE SPRAG |
|
||
|
|

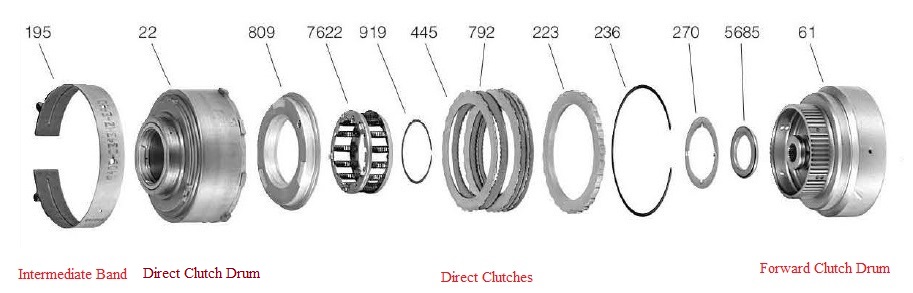

INTERMEDIATE BAND, DIRECT DRUM, DIRECT CLUTCHES & FORWARD CLUTCH DRUM CLICK ON A PICTURE TO ENLARGE IT |
|
E4OD Parts |
